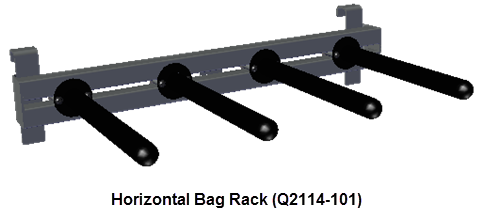

Horizontal Bag Shelf Optional Assembly
Use the unit rendering to determine the number and installation location for the Horizontal Bag Shelf optional installation.

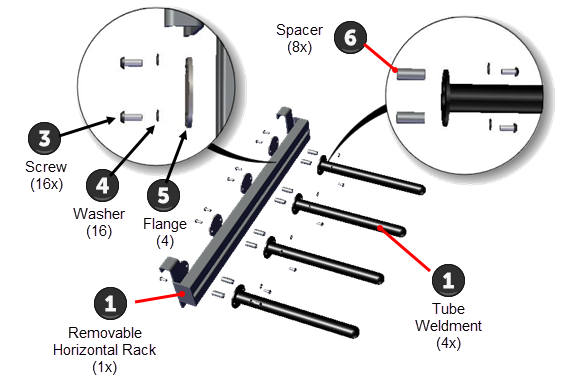

- Install the spacers onto the tube weldments using the M10 hex bolt and flat washer.
- Install the tube weldment onto the removable horizontal rack. Slide the tube weldment with spacers through the slot in the removable horizontal rack and secure using the flange, and M10 hex key bolt. fasteners.
| ID | Qty | PN | Description |
|---|---|---|---|
| 1 | 4 | Q40136-104 | TUBE,ROUND,STL,50MM OD X 2MM THK X 500 MM L |
| 2 | 1 | Q2082 | HORIZONTAL REMOVABLE RACK |
| 3 | 16 | CWTEKN010-025 | SCREW,BHC,M10X1.5X25,STL,BZ |
| 4 | 16 | CWWKKN010-020 | WASHER, FLAT, STEEL, METRIC, M10 X 2 MM THICK, BZ |
| 5 | 4 | Q40385-101 | FLANGE,2 HOLED,BAG RACK |
| 6 | 8 | Q40042-101 | SPACER,TAPPED,M10-1.5 |
| Note: Part qty on a per unit basis. | |||
- Install the assembled horizontal bag shelf onto the unit. Use the rendering to determine installation location.
