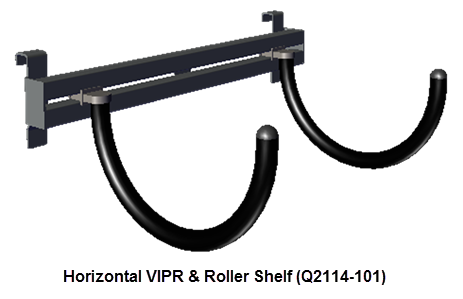

Horizontal VIPR & Roller Shelf Optional Assembly
Use the unit rendering to determine the number and installation location for the Horizontal VIPR & Roller Shelf optional installation.

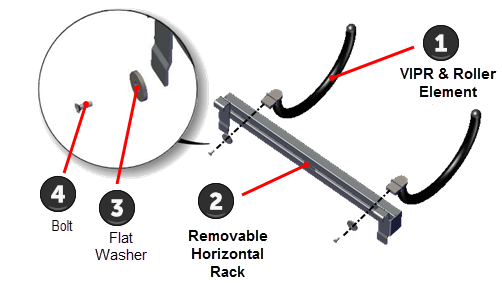

- Attach the VIPR & roller elements onto the horizontal rack using the M10 hex key bolt, and flat washer fasteners.
| ID | Qty | PN | Description |
|---|---|---|---|
| 1 | 1 | Q40691-101 | ASSY,RACK,VIPR & ROLLER ELEMENT |
| 2 | 1 | Q2082 | Horizontal Removable Rack |
| 3 | 2 | Q40701-101 | WASHER,STEEL,VIPR & ROLLER ELEMENT |
| 4 | 2 | CWCNCN010-030 | SCREW,FHC,M10X1.5X30,STL,CZ |
| Note: Part qty on a per unit basis. | |||
- Install the assembled VIPR & roller shelf onto the unit. Use the rendering to determine installation location.
