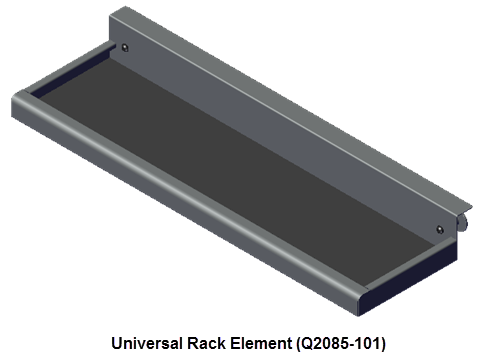

Universal Rack Element
Use the unit rendering to determine the number and installation location for the Universal Rack Element optional installation.

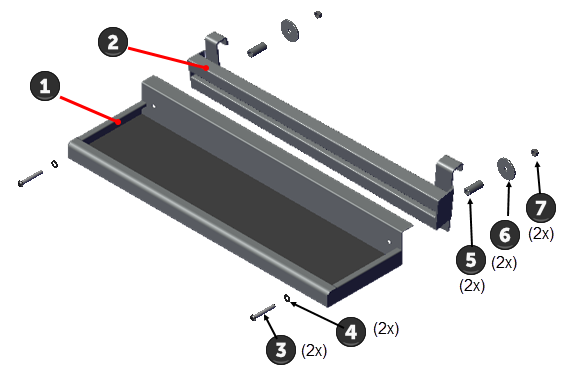

- Attach the horizontal removable rack onto the universal rack element. Secure using the screw, washer, spacer, washer, and hex key screw. Fully tighten all fasteners.
| ID | Qty | PN | Description |
|---|---|---|---|
| 1 | 1 | Q2085 | Universal Rack Element |
| 2 | 1 | Q2082 | Horizontal Removable Rack |
| 3 | 2 | CWTEKN010-070 | SCREW,BHC,M10X1.5X70,STL,BZ |
| 4 | 2 | CWWKKN010-020 | WASHER, FLAT, STEEL, METRIC, M10 X 2 MM THICK, BZ |
| 5 | 2 | Q40739-101 | SPACER SLEEVE, FOR M10 BOLT |
| 6 | 2 | Q40041-101 | WASHER,STEEL,CUSTOM METRIC,59 OD X 11 ID X 5 THK |
| 7 | 2 | CWKFKN010-008 | NUT,LOCK,FULL,M10,NYLON INSERT,STL,BLK |
- Install the assembled universal rack element onto the unit. Use the rendering to determine installation location.
